Part of a Reel's description which refers to a picture asset. More...

#include <reel_picture_asset.h>

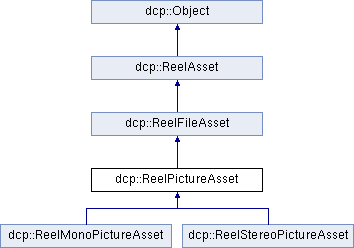

Inheritance diagram for dcp::ReelPictureAsset:

Public Member Functions
	ReelPictureAsset (std::shared_ptr< PictureAsset > asset, int64_t entry_point)

	ReelPictureAsset (std::shared_ptr< const cxml::Node >)

std::shared_ptr< const PictureAsset >	asset () const

std::shared_ptr< PictureAsset >	asset ()

virtual xmlpp::Node *	write_to_cpl (xmlpp::Node *node, Standard standard) const override

bool	equals (std::shared_ptr< const ReelPictureAsset >, EqualityOptions, NoteHandler) const

Fraction	frame_rate () const

void	set_screen_aspect_ratio (Fraction a)

Fraction	screen_aspect_ratio () const

Public Member Functions inherited from dcp::ReelFileAsset
	ReelFileAsset (std::shared_ptr< Asset > asset, boost::optional< std::string > key_id, std::string id, Fraction edit_rate, int64_t intrinsic_duration, int64_t entry_point)

	ReelFileAsset (std::shared_ptr< const cxml::Node > node)

Ref const &	asset_ref () const

Ref &	asset_ref ()

boost::optional< std::string >	hash () const

void	set_hash (std::string h)

bool	file_asset_equals (std::shared_ptr< const ReelFileAsset > other, EqualityOptions opt, NoteHandler note) const

bool	encryptable () const override

boost::optional< std::string >	key_id () const

bool	encrypted () const

Public Member Functions inherited from dcp::ReelAsset
	ReelAsset (std::string id, Fraction edit_rate, int64_t intrinsic_duration, int64_t entry_point)

	ReelAsset (std::shared_ptr< const cxml::Node >)

Fraction	edit_rate () const

int64_t	intrinsic_duration () const

void	set_entry_point (int64_t e)

void	unset_entry_point ()

boost::optional< int64_t >	entry_point () const

void	set_duration (int64_t d)

boost::optional< int64_t >	duration () const

int64_t	actual_duration () const

boost::optional< std::string >	annotation_text () const

void	set_annotation_text (std::string at)

void	unset_annotation_text ()

bool	asset_equals (std::shared_ptr< const ReelAsset >, EqualityOptions, NoteHandler) const

Public Member Functions inherited from dcp::Object
	Object ()

	Object (std::string id)

	Object (Object const &)=delete

Object &	operator= (Object const &)=delete

std::string	id () const

Private Member Functions
boost::optional< std::string >	key_type () const override

Private Attributes
Fraction	_frame_rate

Fraction	_screen_aspect_ratio

Additional Inherited Members
Protected Member Functions inherited from dcp::ReelFileAsset
template<class T >
std::shared_ptr< T >	asset_of_type () const

template<class T >
std::shared_ptr< T >	asset_of_type ()

Protected Member Functions inherited from dcp::ReelAsset
virtual std::string	cpl_node_name (Standard) const =0

virtual std::pair< std::string, std::string >	cpl_node_attribute (Standard) const

virtual std::pair< std::string, std::string >	cpl_node_namespace () const

Protected Attributes inherited from dcp::ReelFileAsset
Ref	_asset_ref

boost::optional< std::string >	_hash

boost::optional< std::string >	_key_id
	The <KeyId> from the reel's entry for this asset, if there is one.

Protected Attributes inherited from dcp::ReelAsset
int64_t	_intrinsic_duration = 0
	The <IntrinsicDuration> from the reel's entry for this asset.

boost::optional< int64_t >	_duration
	The <Duration> from the reel's entry for this asset, if present.

Protected Attributes inherited from dcp::Object
std::string	_id

Detailed Description

Part of a Reel's description which refers to a picture asset.

Definition at line 54 of file reel_picture_asset.h.

Member Function Documentation

◆ asset() [1/2]

std::shared_ptr<PictureAsset> dcp::ReelPictureAsset::asset ( )

inline

Returns: the PictureAsset that this object refers to

Definition at line 66 of file reel_picture_asset.h.

◆ asset() [2/2]

std::shared_ptr<const PictureAsset> dcp::ReelPictureAsset::asset ( ) const

inline

Returns: the PictureAsset that this object refers to

Definition at line 61 of file reel_picture_asset.h.

◆ frame_rate()

Fraction dcp::ReelPictureAsset::frame_rate ( ) const

inline

Returns: picture frame rate

Definition at line 74 of file reel_picture_asset.h.

◆ set_screen_aspect_ratio()

void dcp::ReelPictureAsset::set_screen_aspect_ratio ( Fraction a )

inline

Set the ScreenAspectRatio of this asset.

Parameters

a	New aspect ratio.

Definition at line 81 of file reel_picture_asset.h.

The documentation for this class was generated from the following files:

src/reel_picture_asset.h
src/reel_picture_asset.cc
