An entry in a <Reel> which refers to a use of a piece of content. More...

#include <reel_asset.h>

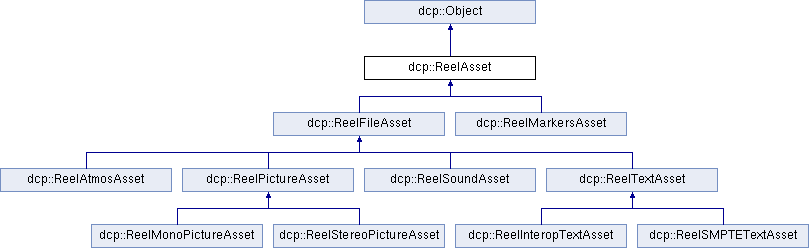

Inheritance diagram for dcp::ReelAsset:

Public Member Functions
	ReelAsset (std::string id, Fraction edit_rate, int64_t intrinsic_duration, int64_t entry_point)

	ReelAsset (std::shared_ptr< const cxml::Node >)

virtual xmlpp::Node *	write_to_cpl (xmlpp::Node *node, Standard standard) const

virtual bool	encryptable () const

Fraction	edit_rate () const

int64_t	intrinsic_duration () const

void	set_entry_point (int64_t e)

void	unset_entry_point ()

boost::optional< int64_t >	entry_point () const

void	set_duration (int64_t d)

boost::optional< int64_t >	duration () const

int64_t	actual_duration () const

boost::optional< std::string >	annotation_text () const

void	set_annotation_text (std::string at)

void	unset_annotation_text ()

bool	asset_equals (std::shared_ptr< const ReelAsset >, EqualityOptions, NoteHandler) const

Public Member Functions inherited from dcp::Object
	Object ()

	Object (std::string id)

	Object (Object const &)=delete

Object &	operator= (Object const &)=delete

std::string	id () const

Protected Member Functions
virtual std::string	cpl_node_name (Standard) const =0

virtual std::pair< std::string, std::string >	cpl_node_attribute (Standard) const

virtual std::pair< std::string, std::string >	cpl_node_namespace () const

Protected Attributes
int64_t	_intrinsic_duration = 0
	The <IntrinsicDuration> from the reel's entry for this asset.

boost::optional< int64_t >	_duration
	The <Duration> from the reel's entry for this asset, if present.

Protected Attributes inherited from dcp::Object
std::string	_id

Private Attributes
boost::optional< std::string >	_annotation_text
	The <AnnotationText> from the reel's entry for this asset.

Fraction	_edit_rate
	The <EditRate> from the reel's entry for this asset.

boost::optional< int64_t >	_entry_point
	The <EntryPoint> from the reel's entry for this asset.

Detailed Description

An entry in a <Reel> which refers to a use of a piece of content.

This class encapsulates the XML that exists in a <Reel> to say that a piece of content is used in this reel. It does not describe the content itself (but links to an Asset object which does).

Definition at line 73 of file reel_asset.h.

Constructor & Destructor Documentation

◆ ReelAsset()

ReelAsset::ReelAsset	(	std::string	id,
		Fraction	edit_rate,
		int64_t	intrinsic_duration,
		int64_t	entry_point
	)

Construct a ReelAsset

Parameters

id	ID of this ReelAsset (which is that of the MXF, if there is one)
edit_rate	Edit rate for the asset
intrinsic_duration	Intrinsic duration of this asset
entry_point	Entry point to use in that asset

Definition at line 60 of file reel_asset.cc.

Member Function Documentation

◆ actual_duration()

int64_t ReelAsset::actual_duration ( ) const

Returns: <Duration>, or <IntrinsicDuration> - <EntryPoint> if <Duration> is not present

Definition at line 164 of file reel_asset.cc.

◆ cpl_node_attribute()

pair< string, string > ReelAsset::cpl_node_attribute ( Standard ) const

protectedvirtual

Returns: Any attribute that should be used on the asset's node in the CPL

Reimplemented in dcp::ReelStereoPictureAsset.

Definition at line 113 of file reel_asset.cc.

◆ cpl_node_name()

virtual std::string dcp::ReelAsset::cpl_node_name ( Standard ) const

protectedpure virtual

Returns: the node name that this asset uses in the CPL's <Reel> node e.g. MainPicture, MainSound etc.

Implemented in dcp::ReelSMPTEClosedCaptionAsset, dcp::ReelMarkersAsset, dcp::ReelInteropClosedCaptionAsset, dcp::ReelSubtitleAsset, dcp::ReelStereoPictureAsset, dcp::ReelSoundAsset, dcp::ReelMonoPictureAsset, and dcp::ReelAtmosAsset.

◆ cpl_node_namespace()

pair< string, string > ReelAsset::cpl_node_namespace ( ) const

protectedvirtual

Returns: Any namespace that should be used on the asset's node in the CPL

Reimplemented in dcp::ReelSMPTEClosedCaptionAsset, dcp::ReelInteropClosedCaptionAsset, and dcp::ReelAtmosAsset.

Definition at line 120 of file reel_asset.cc.

The documentation for this class was generated from the following files:

src/reel_asset.h
src/reel_asset.cc
