dcp::MXF Class Reference

Parent for classes which represent MXF files. More...

#include <mxf.h>

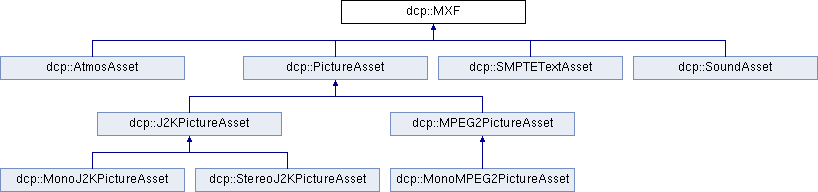

Inheritance diagram for dcp::MXF:

Public Member Functions
	MXF (Standard standard)
bool	encrypted () const
void	set_key_id (std::string i)
boost::optional< std::string >	key_id () const
virtual void	set_key (Key)
boost::optional< Key >	key () const
void	set_context_id (std::string id)
std::string	context_id () const
void	set_metadata (MXFMetadata m)
MXFMetadata	metadata () const
Standard	standard () const

Protected Member Functions
std::string	read_writer_info (ASDCP::WriterInfo const &)
void	fill_writer_info (ASDCP::WriterInfo *w, std::string id) const

Protected Attributes
boost::optional< std::string >	_key_id
boost::optional< Key >	_key
std::string	_context_id
MXFMetadata	_metadata
boost::optional< Standard >	_standard

Friends
template<class P , class Q >
void	start (PictureAssetWriter *writer, std::shared_ptr< P > state, Q *mxf, uint8_t const *data, int size)

Detailed Description

Parent for classes which represent MXF files.

Definition at line 73 of file mxf.h.

Member Function Documentation

context_id()

std::string dcp::MXF::context_id ( ) const

inline

Returns

context ID used when encrypting; this starts off as a random value

Definition at line 116 of file mxf.h.

encrypted()

bool dcp::MXF::encrypted ( ) const

inline

Returns

true if the data is encrypted

Definition at line 80 of file mxf.h.

fill_writer_info()

void MXF::fill_writer_info ( ASDCP::WriterInfo *  w, std::string  id  ) const

protected

Fill in a ASDCP::WriteInfo struct.

Parameters

w	struct to fill in

Definition at line 82 of file mxf.cc.

key()

boost::optional<Key> dcp::MXF::key ( ) const

inline

Returns

encryption/decryption key, if one has been set

Definition at line 104 of file mxf.h.

key_id()

boost::optional<std::string> dcp::MXF::key_id ( ) const

inline

Returns

the ID of the key used for encryption/decryption, if there is one

Definition at line 92 of file mxf.h.

metadata()

MXFMetadata dcp::MXF::metadata ( ) const

inline

Returns

metadata from the MXF file

Definition at line 128 of file mxf.h.

read_writer_info()

string MXF::read_writer_info ( ASDCP::WriterInfo const &  info )

protected

Read an ASDCP::WriterInfo struct, extracting things for our member variables.

Returns

AssetUUID of the MXF

Definition at line 124 of file mxf.cc.

set_context_id()

void dcp::MXF::set_context_id ( std::string  id )

inline

Set the context ID to be used when encrypting.

Parameters

id

New ID.

Definition at line 111 of file mxf.h.

set_key()

void MXF::set_key ( Key  key )

virtual

Set the (private) key that will be used to encrypt or decrypt this MXF's content This is the top-secret key that is distributed (itself encrypted) to cinemas via Key Delivery Messages (KDMs)

Parameters

key	Key to use

Reimplemented in dcp::SMPTESubtitleAsset.

Definition at line 112 of file mxf.cc.

set_key_id()

void dcp::MXF::set_key_id ( std::string  i )

inline

Set the ID of the key that is used for encryption/decryption.

Parameters

i

key ID.

Definition at line 87 of file mxf.h.

set_metadata()

void dcp::MXF::set_metadata ( MXFMetadata  m )

inline

Set the metadata that is written to the MXF file.

Parameters

m

Metadata.

Definition at line 123 of file mxf.h.

Member Data Documentation

_key

boost::optional<Key> dcp::MXF::_key

protected

Key used for encryption/decryption, if there is one

Definition at line 157 of file mxf.h.

_key_id

boost::optional<std::string> dcp::MXF::_key_id

protected

ID of the key used for encryption/decryption, if there is one

Definition at line 155 of file mxf.h.

---

The documentation for this class was generated from the following files:

• src/mxf.h
• src/mxf.cc
