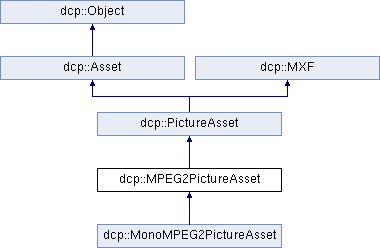

Inheritance diagram for dcp::MPEG2PictureAsset:

Public Member Functions
	MPEG2PictureAsset (Fraction edit_rate)

	MPEG2PictureAsset (boost::filesystem::path file)

virtual std::shared_ptr< MPEG2PictureAssetWriter >	start_write (boost::filesystem::path file, Behaviour behaviour)=0

Public Member Functions inherited from dcp::PictureAsset
	PictureAsset (boost::filesystem::path file)

	PictureAsset (Fraction edit_rate, Standard standard)

Fraction	edit_rate () const

int64_t	intrinsic_duration () const

Size	size () const

void	set_size (Size s)

Fraction	frame_rate () const

void	set_frame_rate (Fraction r)

Fraction	screen_aspect_ratio () const

void	set_screen_aspect_ratio (Fraction r)

Public Member Functions inherited from dcp::Asset
	Asset ()

	Asset (boost::filesystem::path file)

	Asset (std::string id, boost::filesystem::path file)

virtual bool	equals (std::shared_ptr< const Asset > other, EqualityOptions const &opt, NoteHandler note) const

virtual void	add_to_assetmap (AssetMap &asset_map, boost::filesystem::path root) const

virtual void	add_to_pkl (std::shared_ptr< PKL > pkl, boost::filesystem::path root) const

boost::optional< boost::filesystem::path >	file () const

void	set_file (boost::filesystem::path file) const

void	set_file_preserving_hash (boost::filesystem::path file) const

void	rename_file (boost::filesystem::path file)

std::string	hash (boost::function< void(int64_t, int64_t)> progress={}) const

void	set_hash (std::string hash)

void	unset_hash ()

Public Member Functions inherited from dcp::Object
	Object ()

	Object (std::string id)

	Object (Object const &other)

Object &	operator= (Object const &other)

std::string	id () const

Public Member Functions inherited from dcp::MXF
	MXF (Standard standard)

bool	encrypted () const

void	set_key_id (std::string i)

boost::optional< std::string >	key_id () const

virtual void	set_key (Key)

boost::optional< Key >	key () const

void	set_context_id (std::string id)

std::string	context_id () const

void	set_metadata (MXFMetadata m)

MXFMetadata	metadata () const

Standard	standard () const

Static Public Member Functions
static std::string	static_pkl_type (Standard standard)

Protected Member Functions
void	read_video_descriptor (ASDCP::MPEG2::VideoDescriptor const &descriptor)

Protected Member Functions inherited from dcp::MXF
std::string	read_writer_info (ASDCP::WriterInfo const &)

void	fill_writer_info (ASDCP::WriterInfo *w, std::string id) const

Private Member Functions
std::string	pkl_type (Standard standard) const override

Friends
class	MonoMPEG2PictureAssetWriter

Additional Inherited Members
Static Protected Member Functions inherited from dcp::Asset
static void	add_file_to_assetmap (AssetMap &asset_map, boost::filesystem::path root, boost::filesystem::path file, std::string id)

Protected Attributes inherited from dcp::PictureAsset
Fraction	_edit_rate

int64_t	_intrinsic_duration = 0

Size	_size

Fraction	_frame_rate

Fraction	_screen_aspect_ratio

Protected Attributes inherited from dcp::Asset
boost::optional< boost::filesystem::path >	_file

Protected Attributes inherited from dcp::Object
std::string	_id

Protected Attributes inherited from dcp::MXF
boost::optional< std::string >	_key_id

boost::optional< Key >	_key

std::string	_context_id

MXFMetadata	_metadata

boost::optional< Standard >	_standard

Detailed Description

Definition at line 60 of file mpeg2_picture_asset.h.

Member Function Documentation

◆ pkl_type()

string MPEG2PictureAsset::pkl_type ( Standard standard ) const

overrideprivatevirtual

Returns: type string for PKLs for this asset

Implements dcp::Asset.

Definition at line 62 of file mpeg2_picture_asset.cc.

The documentation for this class was generated from the following files:

src/mpeg2_picture_asset.h
src/mpeg2_picture_asset.cc
